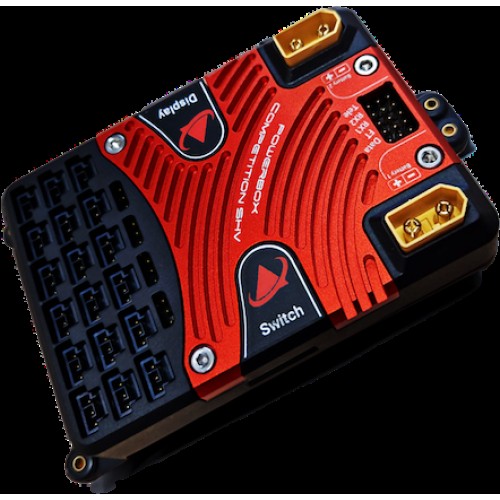

In cooperation with PowerBox Systems, a suitable 24V (6s LiPo) dual power supply has been developed. It is perfectly matched to the use of the ChaServo SV servos in model aircraft.

·       SHV technology up to 35V input voltage

·       40A max. current load for all SHV servo outputs

·       Regulated 8.4V/10A for receiver, peripherals, and 4 servos

·       Consistently dual power electronics design

·       Redundant electronic switch

·       22 channels

·       Optional UAV version

·       High-performance battery switch with high continuous current capacity

·       Sunlight-readable 2.4" TFT display

·       Bilingual menu navigation

·       Servo matching for all 22 outputs

·       Automating function

·       2 independent door sequencers with setup wizard

·       Latest iGyro technology integrated, with the iGyroSAT as the gyro sensor

·       12 independent gyro outputs for: 4x ailerons, 4x elevator, 4x rudder

·       All 12 gyro outputs with individual gain control

·       Special control algorithm for fixed-wing models

·       Detection of all mixers in the transmitter

·       Easiest programming thanks to graphical menu display

·       Quick basic setup with the sophisticated assistant

·       Optional use of GPS III for speed-dependent gyro compensation

·       Telemetry data for PowerBox P²BUS, Futaba S.BUS2, Jeti Ex-BUS, Spektrum SRXL2, Multiplex M-Link, JR X-BUS and Graupner HoTT

·       Transmission of battery, receiver and GPS* data

·       Almost complete control from the transmitter for PowerBox and Jeti

·       Adjustable servo frame rate: 10ms, 12ms, 14ms, 16ms, 18ms

·       Suppression of servo back currents

·       State-of-the-art 32-bit microprocessor for fast and precise signal processing

·       Optimized heat dissipation via the milled high-performance heat sink

·       Switch and display housing made of milled and anodized aluminum

·       Compact dimensions
