Chaservo High-Torque Brushless Datasheet
4-Pole Brushless | 60kg-cm Extreme Torque | Competition Series
1. Physical Specifications
| Feature | Details (Metric First) |
|---|---|
| Dimensions | 40.5 x 17 x 40 mm (1.59 x 0.67 x 1.57 in) |
| Weight | 68 g (2.40 oz*) |
| Case Material | Full Aluminum |
| Gear Set Material | Metal Gears |
| Output Shaft Spline | 25T |
2. Electrical & Control Logic
| Parameter | Specification |
|---|---|
| Motor Type | 4-Pole Brushless |
| Position Sensor | Potentiometer |
| Voltage Range | DC 6.0V – 8.4V |
| Working Frequency | 1520µs / 333Hz |
| Pulse Range | 900µs – 2100µs |
| Programmable | Yes |
3. Dynamic Performance Matrix
| Voltage | Holding Torque | Output Torque | Speed (60°) | Max Current |
|---|---|---|---|---|
| 6.0V | 40.0 kg-cm (555.49 oz·in) |
34.0 kg-cm (472.17 oz·in) |
0.16 sec | 8.5 A |
| 7.4V (Rated) | 50.0 kg-cm (694.36 oz·in) |
42.5 kg-cm (590.21 oz·in*) |
0.13 sec | 10.3 A |
| 8.4V | 60.0 kg-cm (833.24 oz·in) |
51.0 kg-cm (708.26 oz·in) |
0.11 sec | 11.8 A |
High-Torque Class | Brushless Powerhouse | Professional Grade

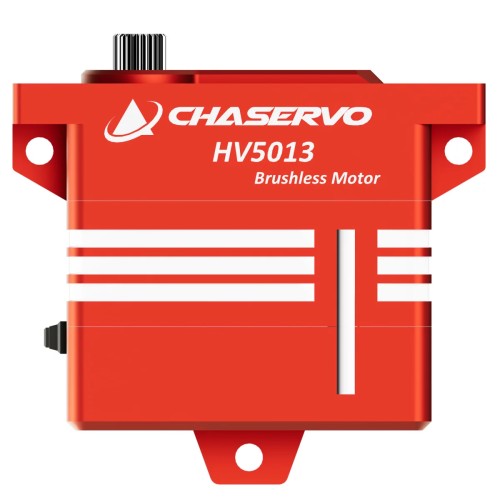

HV5013
- Brand: ChaServo
- Product Code: HV5013
- Availability: On The Way
-
R 2,104.35 ZAR
- Ex Tax: R 2,104.35 ZAR
