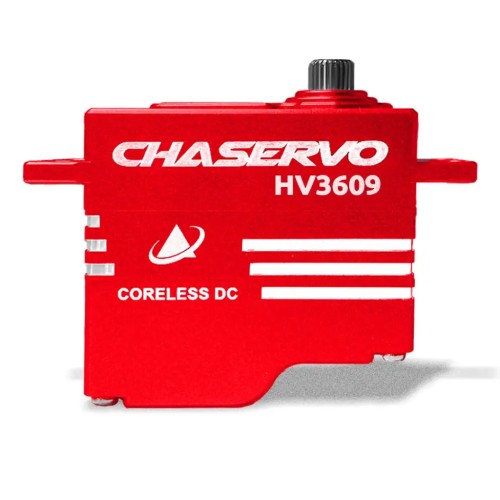

Chaservo Standard Performance Datasheet
High-Torque Coreless DC | Competition Grade
1. Physical Specifications
| Feature | Details (Metric First) |
|---|---|
| Dimensions | 40.5 x 20 x 40 mm (1.59 x 0.79 x 1.57 in) |
| Weight | 81 g (2.86 oz) |
| Case Material | Full Aluminum |
| Gear Set Material | Metal Gears |
| Bearings | 2 x Ball Bearings |
| Output Shaft Spline | 25T, 6 mm (0.236 in) |
2. Electrical & Control Logic
| Parameter | Specification |
|---|---|
| Motor Type | Coreless DC |
| Position Sensor | Potentiometer |
| Voltage Range | DC 4.8V – 8.4V |
| Working Frequency | 1520µs / 333Hz |
| Pulse Range | 500 μs – 2500 μs |
| Programmable | Yes |
3. Dynamic Performance Matrix
| Voltage | Holding Torque | Output Torque | Speed (60°) | Max Current |
|---|---|---|---|---|
| 4.8V | 24.0 kg·cm (333.30 oz·in*) |
16.0 kg·cm (222.20 oz·in*) |
0.13 sec | — |
| 6.0V | 30.0 kg·cm (416.62 oz·in) |
20.0 kg·cm (227.75 oz·in) |
0.11 sec | 4.15 A |
| 7.4V (Rated) | 36.0 kg·cm (499.95 oz·in*) |
24.0 kg·cm (333.30 oz·in*) |
0.09 sec | 4.95 A |
| 8.4V | 40.0 kg·cm (555.49 oz·in) |
27.0 kg·cm (374.96 oz·in*) |
0.08 sec | 5.85 A |
Standard Class | Ultra High-Torque Coreless | Performance Series
HV3609
- Brand: ChaServo
- Product Code: HV3609
