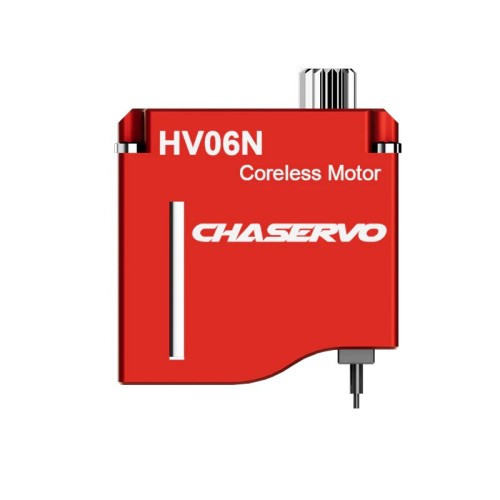

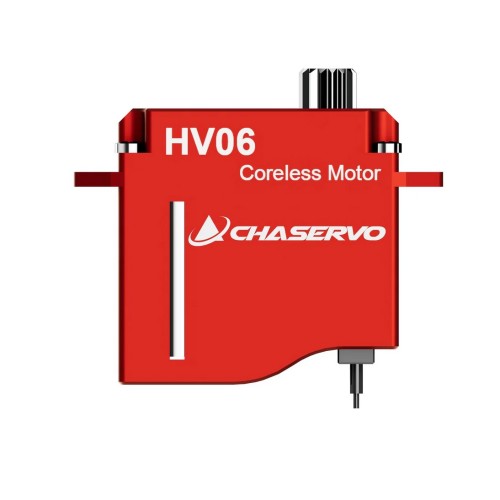

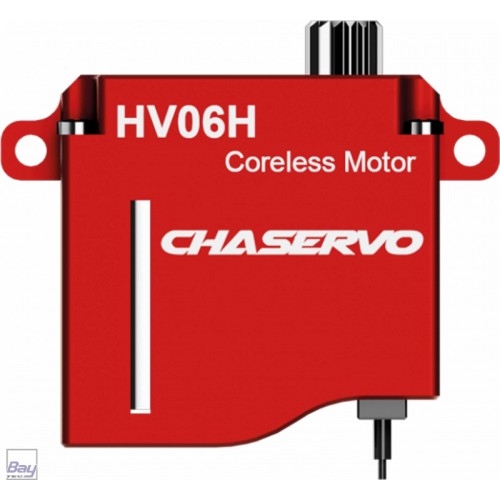

Chaservo Ultra-Micro Datasheet

Coreless DC | Full Aluminum Micro Series

1. Physical Specifications

Feature Details
Dimensions 19 x 6 x 18.5 mm (0.75 x 0.24 x 0.73 in)
Weight 6.1 g (0.21 oz)
Case Material Full Aluminum
Gear Set Material Metal Gears
Bearings 2 x Ball Bearings
Output Shaft Spline 15T, 4 mm

2. Electrical & Control Logic

Parameter Specification
Rated Voltage DC 7.4V
Voltage Range DC 3.3 – 9.0V
Motor Type Coreless DC
Working Frequency 1520 μs / 20 KHz
Pulse Range 900µs – 2100µs
Programmable Yes

3. Dynamic Performance Matrix

Voltage Holding Torque Output Torque Speed (60°) Max Current
6.0V 1.65 kg-cm
(22.91 oz·in)		 1.5 kg-cm
(20.83 oz·in)		 0.07 sec 0.61 A
7.4V 2.2 kg-cm
(30.55 oz·in)		 2.0 kg-cm
(27.77 oz·in*)		 0.06 sec 0.63 A
8.4V 2.65 kg-cm
(36.80 oz·in)		 2.2 kg-cm
(30.55 oz·in)		 0.05 sec 0.67 A
Ultra-Micro Precision | Full Aluminum Body | Extreme Speed

Write a review

Note: HTML is not translated!
    Bad           Good

HV06

  • Brand: ChaServo
  • Product Code: HV06
  • Availability: In Stock

  • R 1,067.00 ZAR

  • Ex Tax: R 927.83 ZAR
