Chaservo Elite Brushless Datasheet
4-Pole Brushless | High-Torque Standard Series
1. Physical Specifications
| Feature | Details (Metric First) |
|---|---|
| Dimensions | 40.5 x 20 x 23.1 mm (1.59 x 0.79 x 0.91 in) |
| Weight | 56 g (1.98 oz) |
| Case Material | Full Aluminum |
| Gear Set Material | Metal Gears |
| Bearings | 2 x Ball Bearings |
| Output Shaft Spline | 25T, 6 mm (0.236 in) |
2. Electrical & Control Logic
| Parameter | Specification |
|---|---|
| Motor Type | 4-Pole Brushless |
| Position Sensor | Potentiometer |
| Voltage Range | DC 4.0V – 9.0V |
| Working Frequency | 1520µs / 333Hz |
| Pulse Range | 500 μs – 2500 μs |
| Programmable | Yes |
3. Dynamic Performance Matrix
| Voltage | Holding Torque | Output Torque | Speed (60°) | Max Current |
|---|---|---|---|---|
| 6.0V | 30.0 kg-cm (416.62 oz·in) |
26.7 kg-cm (370.79 oz·in) |
0.14 sec | 4.0 A |
| 7.4V (Rated) | 35.0 kg-cm (486.05 oz·in) |
30.2 kg-cm (419.40 oz·in*) |
0.12 sec | 4.8 A |
| 8.4V | 40.0 kg-cm (555.49 oz·in) |
35.0 kg-cm (486.05 oz·in) |
0.11 sec | 5.8 A |
Standard Class | Elite Brushless Performance | High Torque Precision

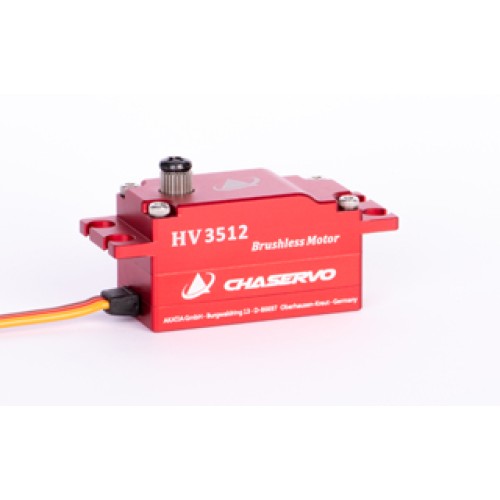

HV3512
- Brand: ChaServo
- Product Code: HV3512
- Availability: In Stock
-
R 2,420.00 ZAR
- Ex Tax: R 2,104.35 ZAR
