Chaservo Digital Datasheet
High-Precision Aluminum | Coreless DC Series
1. Physical Specifications
| Feature | Details (Metric First) |
|---|---|
| Dimensions | 30 x 9.5 x 33.5 mm (1.18 x 0.37 x 1.31 in) |
| Weight | 21.7 g (0.76 oz) |
| Case Material | Full Aluminum |
| Gear Set Material | Metal Gears |
| Bearings | 2 x Ball Bearings |
| Output Shaft Spline | 25T, 6 mm (0.236 in) |
2. Electrical & Control Logic
| Parameter | Specification |
|---|---|
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 4.8 – 8.4V |
| Motor Type | Coreless DC |
| Position Sensor | Potentiometer |
| Working Frequency | 1520µs / 333Hz |
| Pulse Range | 500 μs – 2500 μs |
| Programmable | Yes |
3. Dynamic Performance Matrix
| Voltage | Holding Torque | Output Torque | Speed (60°) | Max Current |
|---|---|---|---|---|
| 6.0V | 8.5 kg-cm (118.0 oz·in) |
7.5 kg-cm (104.1 oz·in) |
0.17 sec | 1.16 A |
| 7.4V | 10.5 kg-cm (145.81 oz·in) |
9.3 kg-cm (129.15 oz·in*) |
0.15 sec | 1.32 A |
| 8.4V | 11.5 kg-cm (159.7 oz·in) |
10.2 kg-cm (141.6 oz·in) |
0.12 sec | 1.58 A |
Chaservo Engineering | Aluminum Mini Class | Coreless Efficiency

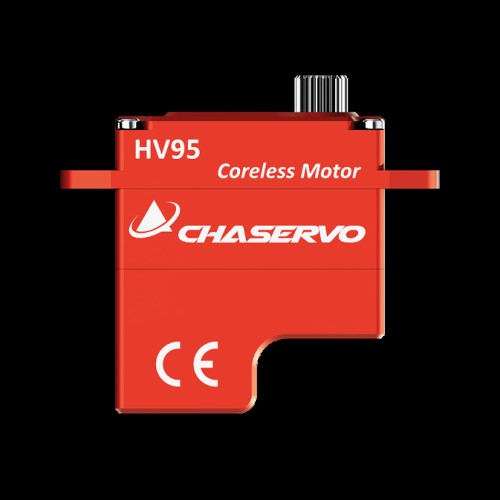

HV95
- Brand: ChaServo
- Product Code: HV95
- Availability: In Stock
-
R 1,270.00 ZAR
- Ex Tax: R 1,104.35 ZAR
