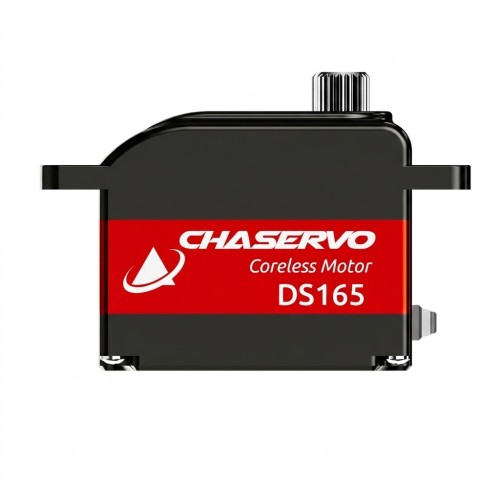

Precision Mini Digital Servo
Contactless Hall Sensor | High-Speed Coreless
1. Physical Specifications
| Feature | Details (Metric First) |
|---|---|
| Dimensions | 32 x 16.5 x 26.5 mm (1.25 x 0.64 x 1.04 in) |
| Weight | 36 g (1.26 oz) |
| Case Material | Technopolymer and Aluminum Hybrid |
| Gear Set Material | Metal Gears |
| Ball Bearing | 2 x Ball Bearings |
2. Electrical & Control Logic
| Parameter | Specification |
|---|---|
| Position Sensor | Contactless / Hall Sensor |
| Motor Type | Coreless DC |
| Voltage Range | DC 3.5V – 9.0V |
| Pulse Range | 500 μs – 2500 μs |
| Working Frequency | 1520µs / 333Hz |
| Programmable | Yes |
3. Dynamic Performance Matrix
| Voltage | Holding Torque | Output Torque | Speed (60°) |
|---|---|---|---|
| 4.8V | 5.4 kg-cm (74.99 oz·in) |
4.86 kg-cm (67.49 oz·in*) |
0.088 sec |
| 7.4V (Rated) | 7.8 kg-cm (108.32 oz·in) |
7.02 kg-cm (97.49 oz·in*) |
0.059 sec |
| 8.4V | 9.0 kg-cm (124.98 oz·in) |
8.10 kg-cm (112.48 oz·in) |
0.055 sec |
Advanced Magnetics | Ultra-High Speed | Mini Class
DS165
- Brand: ChaServo
- Product Code: DS165
- Availability: In Stock
-
R 1,210.00 ZAR
- Ex Tax: R 1,052.17 ZAR
